Fresh and Gray Water Tanks
RV Monitor Panels allow you to monitor the amount of fluid in your water and waste tanks along with the battery power level. Typically only one monitor panel (2 tank or 3 tank) is needed per vehicle/unit and 4 Probes per tank.
To check fluid levels, press and hold the button designated for the tank and read the level indicators on the panel. Sometimes, residue on the sides of a tank, or water with a low mineral content will give a false reading.
Check the levels occasionally when you are sure of a tank’s contents and compare it to the reading on the monitor panel.
KIB 2 Tank Monitor Panel 12 volt - White Face Plate
Can be used for three water tanksMonitor Panel Includes the Harnesses - probes are sold separate
On/Off Toggle switch for 12 volt Water Pump
Customer will need to provide the wiring going from the harness to the Monitor Panel

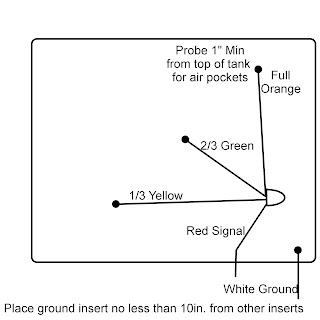

Wiring Diagram
Monitor Panel Includes the Harnesses - probes are sold separate
On/Off Toggle switch for 12 volt Water Pump
Customer will need to provide the wiring going from the harness to the Monitor Panel
KIB 3 Tank Monitor Panel 12 volt - Available in Black or White Face Plate
Can be used for three water tanksMonitor Panel Includes the Harnesses - probes are sold separate
On/Off Toggle switch for 12 volt Water Pump
Customer will need to provide the wiring going from the harness to the Monitor Panel
